A Complete Life Graph

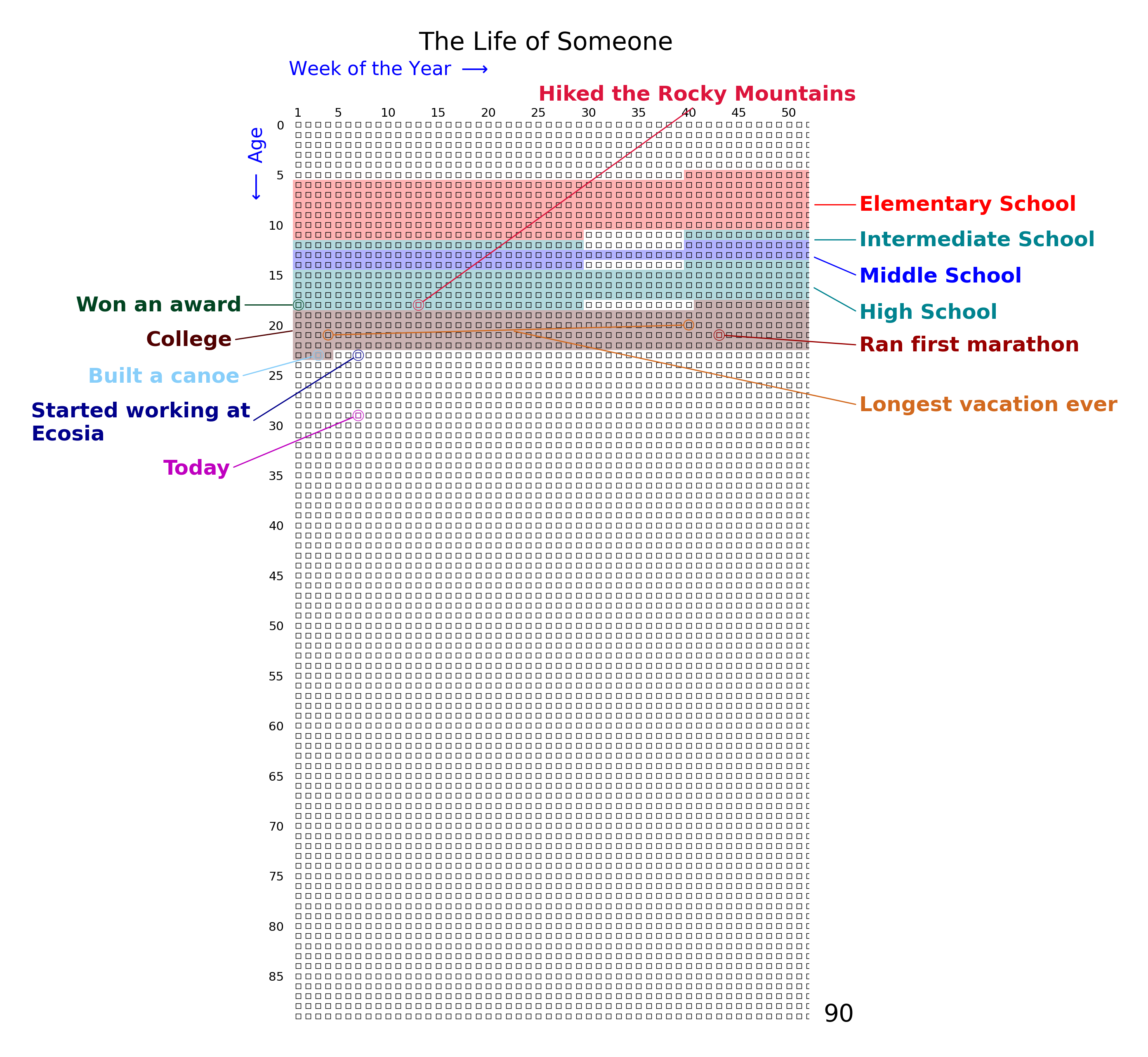

Putting several features together into one graph: events, eras, era spans, a title, and a max-age label.

from datetime import date

from lifegraph import Lifegraph, Side
from lifegraph.configuration import Papersize
from lifegraph.core import Point

birthday = date(1995, 11, 20)
g = Lifegraph(birthday, dpi=300, size=Papersize.Letter, label_space_epsilon=1)

g.add_life_event("Won an award", date(2013, 11, 20), "#014421")
g.add_life_event("Hiked the Rocky Mountains", date(2014, 2, 14), "#DC143C", hint=(25, -3))
g.add_life_event("Ran first marathon", date(2017, 9, 11), "#990000")
g.add_life_event("Built a canoe", date(2018, 12, 8), "#87CEFA")
g.add_life_event("Started working at\nEcosia", date(2019, 1, 7), "#00008B")

# Use a fixed date so the gallery build is reproducible
g.add_life_event("Today", date(2025, 1, 1), (0.75, 0, 0.75))

g.add_era("Elementary School", date(2001, 8, 24), date(2007, 6, 5), "r")
g.add_era("Intermediate School", date(2007, 8, 24), date(2008, 6, 5), "#00838f")
g.add_era("Middle School", date(2008, 8, 24), date(2010, 6, 5), "b")
g.add_era("High School", date(2010, 8, 24), date(2014, 6, 5), "#00838f")
g.add_era("College", date(2014, 9, 1), date(2018, 12, 14), (80 / 255, 0, 0), side=Side.LEFT)

g.add_era_span("Longest vacation ever", date(2016, 8, 22), date(2016, 12, 16), "#D2691E", hint=Point(53, 28))

g.add_title("The Life of Someone")
g.show_max_age_label()

g.save("alife.png")
